HV/K34 Series Hand-Switching Valve

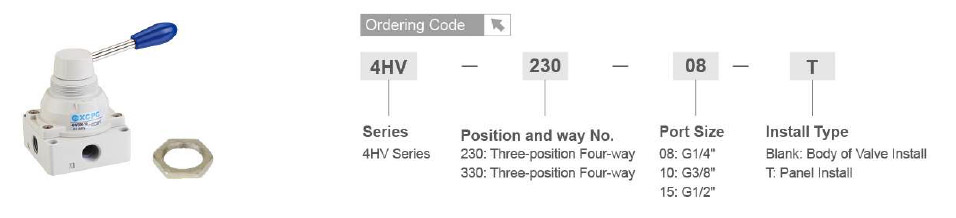

Ordering Code
Specification
|
Model
|
HV-02
|
HV-03
|
HV-04
|
K34R -L6
|
K34R -L8
|
|
Working Medium
|
40 Micron Filtered Air
|
||||
|
Effective Sectional Atea
|
30mm2(cv+1.68)
|
18mm2(cv+1.00)
|
|||
|
Port Size
|
G1/4"
|
G3/8"
|
G1/2"
|
G1/8"
|
G1/4"
|
|
Working-pressure Range
|
0~0.8MPa
|
||||
|
Operating Temperature Range
|
0~60℃
|
||||
Overall Dimensions
Other info
